Antibodies

Ankyrin G Antibody, Clone N106/20: ATTO 488

Product Sizes
100 ug
SMC-404D-A488-100UG
About this Product
SKU:
SMC-404D-A488
Additional Names:
ANK-3 Antibody, ANK3 Antibody, ankyrin 3 Antibody, Ankryin G119 Antibody, brain specific ankyrin G Antibody, CHANK3 Antibody, ankyrin 3 (G) Antibody, Ankyrin-3 Antibody, Ankyrin-G Antibody, node of Ranvier (ankyrin G) Antibody, Ankyrin 3 Antibody, node of Ranvier Antibody, Ankyrin G119 Antibody, FLJ45464 Antibody, OTTHUMP00000217458 Antibody, OTTHUMP00000217575 Antibody, RP11 369L1.1 Antibody
Application:
Immunocytochemistry, Immunofluorescence, Western Blot
Buffer:
PBS
CE/IVD:
RUO
translate.label.attr.clone:
N106/20 (Formerly sold as S106-20)
Clonality:
Monoclonal
Conjugate:
ATTO 488
Concentration:
1 mg/ml
Extra Details:
Ankyrins are a family of adaptor proteins that mediate the attachment of integral membrane proteins to the spectrin-actin based membrane skeleton (1). Ankyrins have binding sites for the beta subunit of spectrin and at least 12 families of integral membrane proteins. This linkage is required to maintain the integrity of the plasma membranes and to anchor specific ion channels, ion exchangers and ion transporters in the plasma membrane.
Host:
Mouse
Immunogen:
Fusion protein 1000 C-terminal amino acids of human Ankyrin G (also known as ANK-3 or ankyrin-3) encompassing all of Ankyrin G with the exception of Ankyrin repeats
Isotype:
IgG1
Purification:
Protein G Purified
Reactivities:
Human, Mouse, Rat
Shipping Conditions:
Blue Ice
Specificity:
Detects >~200kDa.
Storage Conditions:
See Manual
Supplier:
StressMarq Biosciences
Type:
Antibody: Monoclonal Antibody

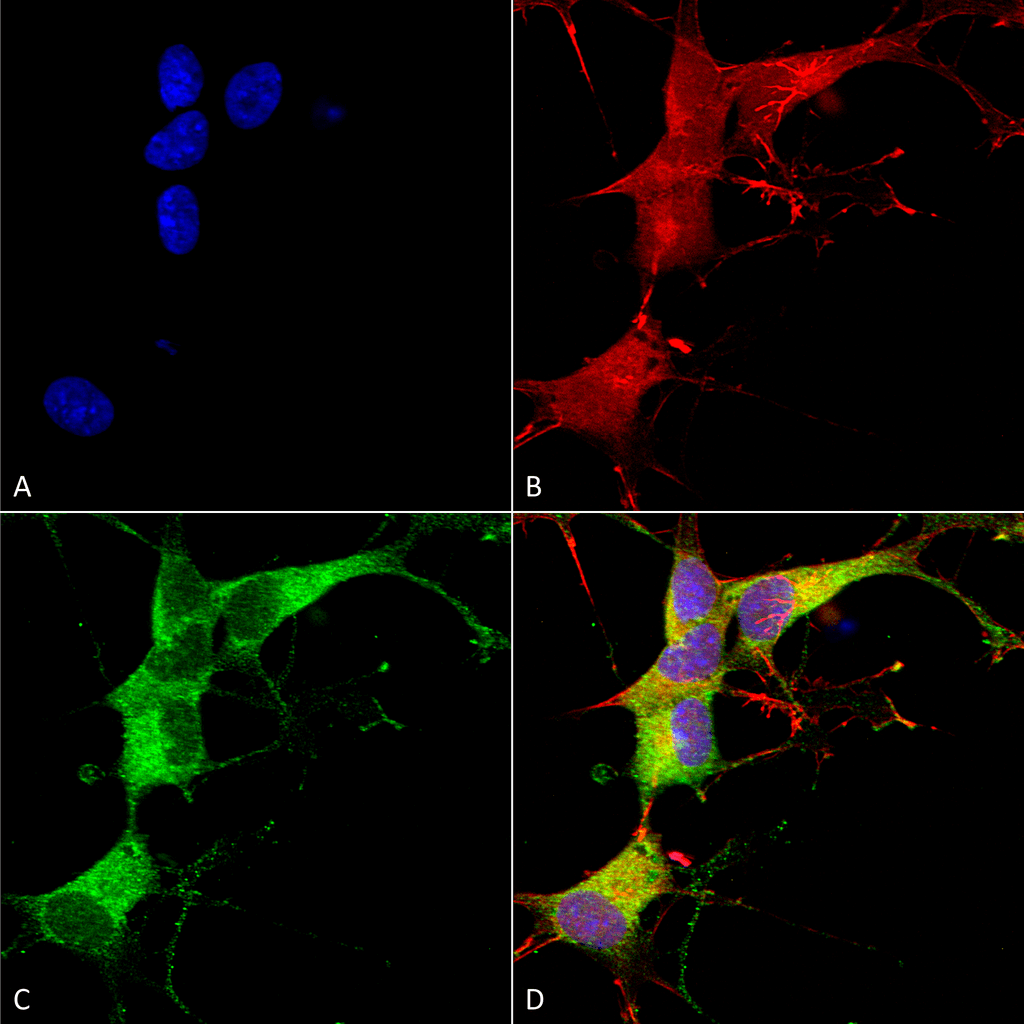

Immunocytochemistry/Immunofluorescence analysis using Mouse Anti-Ankyrin G Monoclonal Antibody, Clone N106/20 (SMC-404). Tissue: Neuroblastoma cells (SH-SY5Y). Species: Human. Fixation: 4% PFA for 15 min. Primary Antibody: Mouse Anti-Ankyrin G Monoclonal Antibody (SMC-404) at 1:100 for overnight at 4°C with slow rocking. Secondary Antibody: AlexaFluor 488 at 1:1000 for 1 hour at RT. Counterstain: Phalloidin-iFluor 647 (red) F-Actin stain; Hoechst (blue) nuclear stain at 1:800, 1.6mM for 20 min at RT. (A) Hoechst (blue) nuclear stain. (B) Phalloidin-iFluor 647 (red) F-Actin stain. (C) Ankyrin G Antibody (D) Composite.

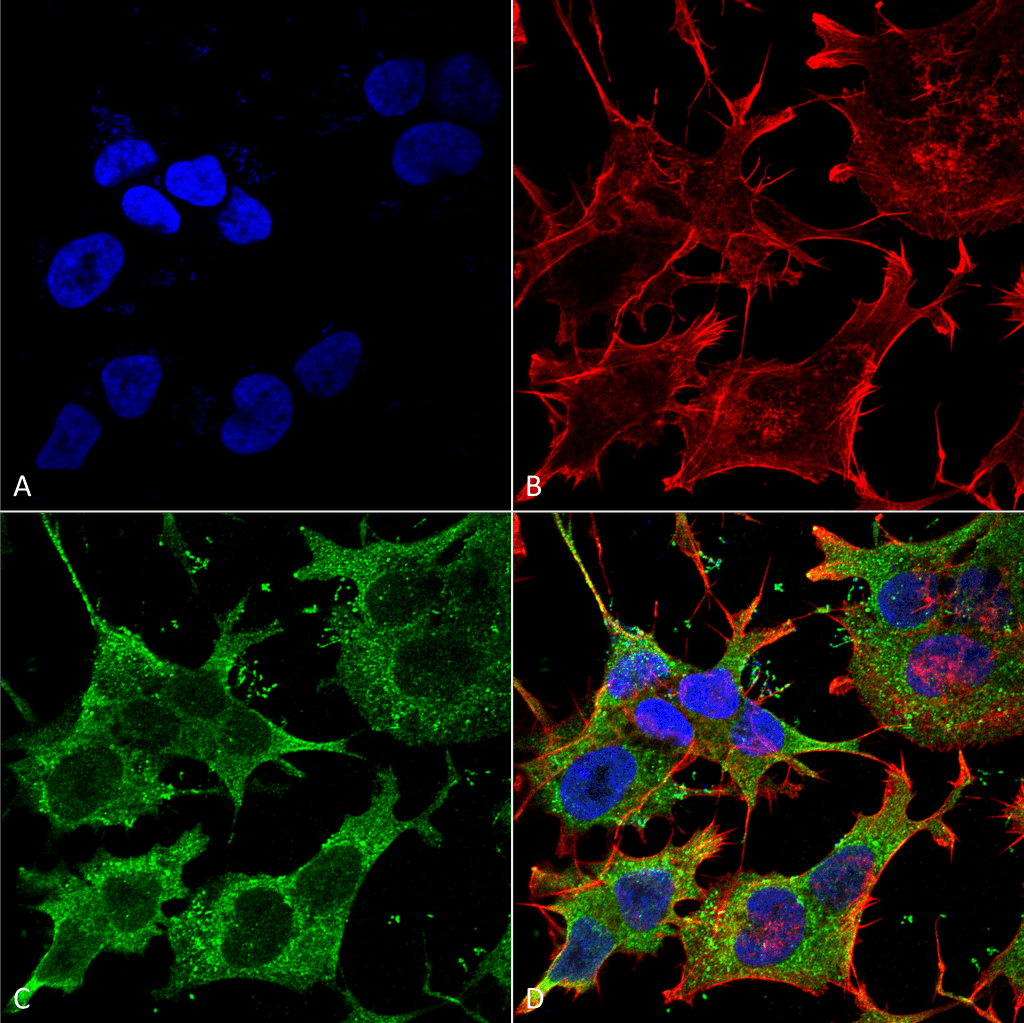

Immunocytochemistry/Immunofluorescence analysis using Mouse Anti-Ankyrin G Monoclonal Antibody, Clone N106/20 (SMC-404). Tissue: Neuroblastoma cell line (SK-N-BE). Species: Human. Fixation: 4% Formaldehyde for 15 min at RT. Primary Antibody: Mouse Anti-Ankyrin G Monoclonal Antibody (SMC-404) at 1:100 for 60 min at RT. Secondary Antibody: Goat Anti-Mouse ATTO 488 at 1:200 for 60 min at RT. Counterstain: Phalloidin Texas Red F-Actin stain; DAPI (blue) nuclear stain at 1:1000, 1:5000 for 60 min at RT, 5 min at RT. Localization: Cytoplasm . Magnification: 60X. (A) DAPI (blue) nuclear stain. (B) Phalloidin Texas Red F-Actin stain. (C) Ankyrin G Antibody. (D) Composite.

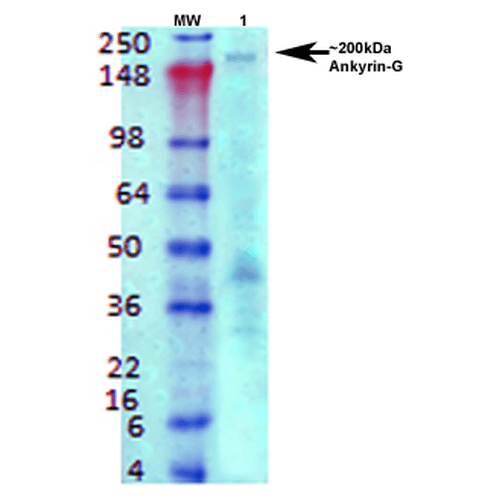

Western Blot analysis of Rat brain membrane lysate showing detection of Ankyrin G protein using Mouse Anti-Ankyrin G Monoclonal Antibody, Clone N106/20 (SMC-404). Primary Antibody: Mouse Anti-Ankyrin G Monoclonal Antibody (SMC-404) at 1:1000.
